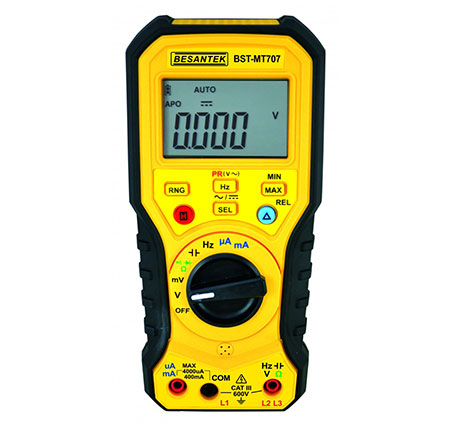

BESANTEK BST-MT707 DIGITAL MULTIMETER AND PHASE ROTATION TESTER

BESANTEK BST-MT707 DIGITAL MULTIMETER AND PHASE ROTATION TESTER

SKU: f4d7d4f9150c
In Stock

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:
Tag:

Description

BESANTEK Digital Multimeter and Phase Rotation Tester measures AC/DC voltage and current, frequency, capacitance, resistance, diode, phase rotation and continuity.

UPC Number: 752830844667

Features

  • 4000-count LCD.
  • Auto ranging.
  • Voltage, resistance, current, continuity and diode measurement.
  • Can measure resistance/insulation up to 200.0M ohm.
  • Checks a wide range of 3-phase power sources (80~750VAC).
  • Phase rotation indication: clockwise and counter-clockwise on LCD.
  • The LCD will show AC voltage between phases and phase rotation.
  • Wide range for capacitance test:0~40000F (40.00mF).
  • REL/auto-zero function.
  • Max./Min. function.
  • VAHz function.
  • Frequency: 40.00MHz.
  • Data hold function.
  • Over range indication.
  • Low battery warning indicator.
  • Auto power off.
  • Convenient stand for viewing.
  • Compact and lightweight.
  • Accessories: Instruction manual, test leads, soft pouch and batteries.

Tech. Specification

1000V

400V

40V

4V

400mV

Range

DC Voltage

1V

100mV

10mV

1mV

0.1mV

Resolution

(0.5%rdg+3dgt)

Accuracy

10M



Input Impedance

750V

400V

40V

4V

400mV

Range

AC Voltage

1V

100mV

10mV

1mV

0.1mV

Resolution

(1.0%rdg+5dgt)

Accuracy

10M

Input Impedance

400mA

40mA

4000A

400A

Range

DC Current

0.1mA

0.01mA

1A

0.1A

Resolution

(1.0%rdg+5dgt)

Accuracy

0.5A/600V fast blow fuse for 400mA

OL Protection

400mA

40mA

4000A

400A

Range

AC Current

0.1mA

0.01mA

1A

0.1A

Resolution

(1.2%rdg+5dgt)

Accuracy

0.5A/600V fast blow fuse for 400mA

OL Protection

200M

40M

4M

400k

40k

4k

400

40

Range

Resistance

100k

10k

1k

100

10

1

0.1

0.01

Resolution

(2.3%+4d)

(2%+4d)

(1.2%rdg+3dgt)

Accuracy

40mF

4mF

400F

40F

4F

400nF

40nF

4nF

Range

Capacitance

10F

1F

100nF

10nF

1nF

100pF

10pF

1pF

Resolution

(3%rdg+10dgt)

Accuracy

40MHz

4MHz

400kHz

40kHz

4kHz

400Hz

Range

Frequency

10kHz

1kHz

100Hz

10Hz

1Hz

0.1Hz

Resolution

(0.5%rdg+2dgt)

Accuracy

400.0

Range

Continuity

Less than 30

Beeper

2V

Range

Diode

(1.5%rdg+3dgt)

Accuracy

80~750V AC

Input Voltage

Phase Rotation

40~80Hz

Frequency Range

All electronic (not mechanical)

Circuit Structure

0C~40C, 80%RH max.

Operating Temperature

& Humidity

-10C~50C, 80%RH max.

Storage Temperature

& Humidity

1.5V (AAA) 2

Power Source

188 (L) x 90 (W) x 54 (D) mm

Dimensions

Approx. 346g (battery included)



Ordering Info.

  • BESANTEK BST-MT707 Digital Multimeter and Phase Rotation Tester
