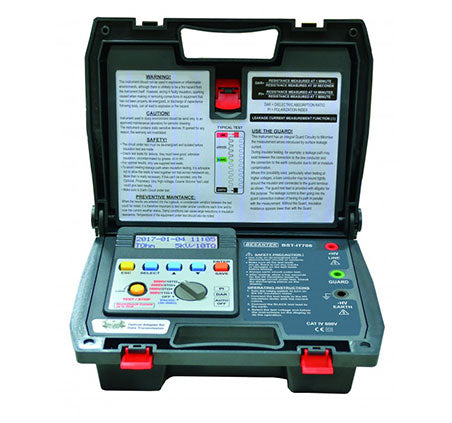

BESANTEK BST-IT705 DIGITAL HIGH VOLTAGE INSULATION TESTER 5KV

BESANTEK BST-IT705 DIGITAL HIGH VOLTAGE INSULATION TESTER 5KV

SKU: 2b122819a91a
In Stock

BESANTEK Digital High Voltage Insulation Tester Is Designed To Evaluate Wires And Cables For Proper Insulation tolerances.

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:
Tag:

Description

BESANTEK Digital High Voltage Insulation Tester Is Designed To Evaluate Wires And Cables For Proper Insulation tolerances.

UPC Number:  752830841864

Features

  • High contrast OLED display.
  • Microprocessor controlled.
  • Tests insulation resistance up to 10T.
  • 4 Insulation test voltages: 500V, 1000V, 2500V, 5000V.
  • AC/DC voltmeter.
  • PI (Polarization Index) indication.
  • DAR (Dielectric Absorption Ratio) indication.
  • Auto-ranging on all insulation ranges.
  • Optical USB to RS-232 data transmission.
  • Well isolated from contact.
  • Well protected from surges.
  • 2 built-in optical LEDs for data transfer.
  • Visual and audio warning of external voltage presence (30Vac or 30Vdc).
  • Auto-hold function to freeze reading.
  • Overload protection.
  • Adjustable testing duration: 1~30 minutes.
  • Internal memory for data storage.
  • Displays testing duration for insulation measurement.
  • Auto-off function.
  • 200 measurement results can be saved in memory and recalled on display.
  • Accessories: Instruction manual, test leads, data transmission cable, compact disk (CD) for PC interface, alligator clip and charger.

Tech. Specification

500V, 1000V, 2500V, 5000V

Test Voltage

1T/500V

2T/1000V

5T/2500V

10T/5000V

Insulation Resistance

(5.0%rdg+5dgt)

0~100G/500V

0~200G/1000V

0~500G/2500V

0~1000G/5000V

Accuracy

12%rdg

100G~1T/500V

200G~2T/1000V

500G~5T/2500V

1000G~10T/5000V

1000M: 1M

10G: 0.01G

100G: 0.1G

1T: 1G

10T: 10G

Resolution

up to 5mA

Short Circuit Current

PI (Polarization Index)

DAR (Dielectric Absorption Ratio)

Range: 30~600V AC, 30~600V DC

Accuracy: (2.0%rdg+3dgt)

Resolution: 1V

Voltmeter

0.5nA~0.55mA

(depending on the insulation resistance)

Current Measurement

Rechargeable battery

Power Source

330 (L) 260 (W) 160 (D) mm

Dimensions

Approx. 3760g

Weight

Ordering Info.

  • BESANTEK BST-IT707 Digital High Voltage Insulation Tester 5kV
