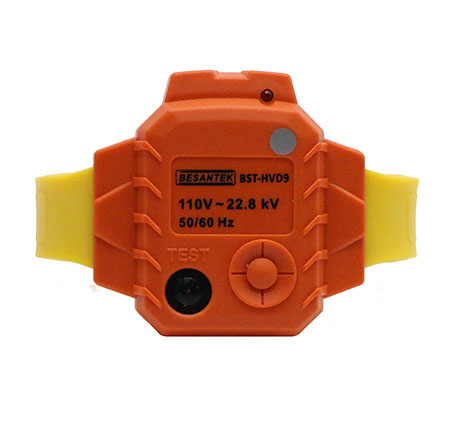

BESANTEK BST-HVD9 PERSONAL SAFETY VOLTAGE DETECTOR (110V~22.8KV)

BESANTEK BST-HVD9 PERSONAL SAFETY VOLTAGE DETECTOR (110V~22.8KV)

SKU: c7a4ecee77df
In Stock

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:
Tag:

Description

BESANTEK Personal Safety Voltage Detector is designed to alert user that they are approaching live equipment where dangerous voltage is present.

UPC Number: 752830840768

Features

  • Compact, easy to wear and convenient to use.
  • Waterproof and protection class: IP65.
  • Usable both indoor and outdoor.
  • Equipped with self-testing functions.
  • Able to sense all kinds of AC high voltage system.
  • Low power consumption.
  • Accessories: Instruction manual, elastic cord, elastic cord adjustment, connection ring, hook sand battery.

Tech. Specification

110V~22.8kV

Range

85cm for 22.8kV(phase to ground)

Distance of Starting Warning

50/60 Hz

Applicable Frequency

>70dB at 1m distance

Volume

6.6kV (3.8kV phase to ground):40cm 20%
11.4kV(6.6kV phase toground): 55cm 20%
19.7kV (11.4kV phase to ground): 80cm 20%
22.8 kV (13.2kV phase to ground): 85cm 20%

VoltageDetection Distance

0C to 40C, 80%RH

Operating Temperature & Humidity

50 hours for continuous use

Battery Life

CR2032 x 1

Power Source

61 (L) x 62 (W) x 18.5 (D) mm

Dimensions

Approx. 70g (battery included)

Weight



Ordering Info.

  • BESANTEK BST-HVD9 Personal Safety Voltage Detector (110V~22.8kV)

Downloads
