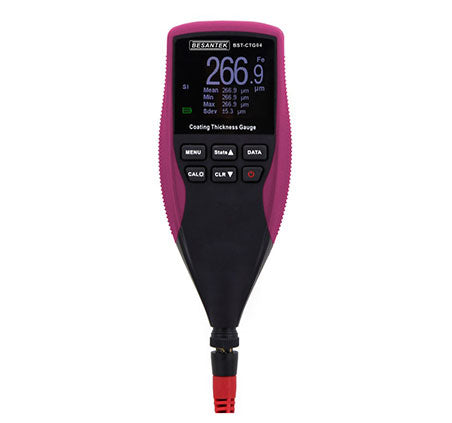

BESANTEK BST-CTG04 2 IN 1 DIGITAL COATING THICKNESS GAUGE WITH PROBE

BESANTEK BST-CTG04 2 IN 1 DIGITAL COATING THICKNESS GAUGE WITH PROBE

SKU: 5a7dd332a7ad
In Stock

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:
Tag:

Description

BESANTEK 2 In 1 Digital Coating Thickness Meter, Is Designed For Measurement Of Ferromagnetic Metal Base (Iron, Nickel, Etc.) And Non Ferromagnetic Metal Base (Aluminum, Brass, Stainless Steel, Etc.).

UPC Number: 752830836761

Features

  • Integrated 2 in 1 probe.
  • Automatic F/NF detection and display of the substrate type.
  • Continuous and single measurement available.
  • Simultaneously display measuring value, average value, max. value, min. value and standard deviation.
  • Auto calibration and auto zero adjustment.
  • 50 groups of data.
  • Brightness adjustable backlight.
  • Automatic power on and off.
  • Metric and imperial measurement systems.
  • Ideal for use in control of painting, distinguishing crashed cars, etc.
  • Set higher and lower alarm range for measuring.
  • Low battery warning indicator.
  • TFT 320 x 240 LCD display.
  • Accessories: Instruction manual, Fe/NFe probes, set of plastic test shims and 2 reference calibration plates (steel and aluminum), hard shell storage case and batteries.

Tech. Specification

Measuring Range

0~1250m/0~50mils
(max. 2000m/80mils for reference)

Resolution

1m/0.1mils

Accuracy

(2m+2%)/(0.1mils+2%)

Surface Curvature

Convex 1.5mm/concave 7mm

Minimum Test Surface

8mm

Minimum thickness of

0.4mm

Response Times

0.6 sec

Probe Length

Approx. 93cm

Operation Temperature

-10C~50C (12F~122F)

Power Source

1.5V AAA battery x 2

Dimensions

166 x 68 x 30 mm

Weight

Approx. 180g (batteries included)

Ordering Info.

  • BST-CTG04 2 in 1 Digital Coating Thickness Gauge With Probe
