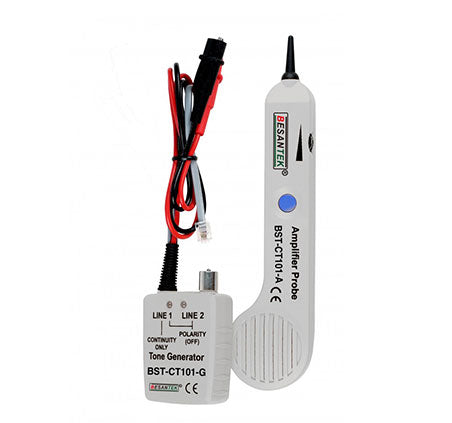

BESANTEK BST-CT101 CABLE TRACER WITH RJ11 CONNECTOR

BESANTEK BST-CT101 CABLE TRACER WITH RJ11 CONNECTOR

SKU: 0c3088c5e621
In Stock

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:
Tag:

Description

UPC Number: 752830836266

Features

Amplifier Probe:

  • The amplifier probe is designed to identify and trace wires or cables within a group without damaging the insulation.
  • Work with any Tone Generator to identify wires.
  • Volume control for increased sensitivity and adjustable to suit work environment.
  • Recessed ON/OFF button prevents battery drain.
  • Power supply is a 9V battery with a life of approximately 100 hours.
  • A phone jack is designed for headset or handset.

Tone Generator:

  • Tone generator is a great tool for locating and identifying cable pairs or individual conductors.
  • It does not only serve as a tone generator, but also serves as a continuity and polarity tester.
  • A tone selector switch located inside the unit for selection of the fast tone or slow tone.
  • Two bi-colored LED for Line1 and Line 2 indication of the polarities of the telephone lines.
  • The unit has alligator type terminals, a modular cable of 4 conductors with a strong connector.
  • The continuity function is only applied to Line 1.
  • Accessories: Instruction manual, soft pouch and batteries.

Tech. Specification

Amplifier Probe

Frequency detection: 1Hz~12kHz
Receiver distance: <50cm
Sensitivity control:
Probe tip: fixed

Tone Generator

 Waveform: square wave
Frequency: 1kHz 15%
Over voltage protection: 80V DC
Alternating tone: fast and slow
Connection: RJ11 connector, alligator clip x 2

Operating Temperature & Humidity

0C~40C, 80%RH max.

Storage Temperature & Humidity

-10C~50C, 80%RH max.

Power Source

9V battery
Dimensions

Amplifier probe: 230 (L) x 56 (W) x 27 (D) mm
Tone generator: 86 (L) x 63 (W) x 26 (D) mm
Weight

Amplifier probe: Approx. 125g (battery included)
Tone generator: Approx. 130g (battery included)

Ordering Info.

  • BESANTEK BST-CT101 Cable Tracer with RJ11 Connector
