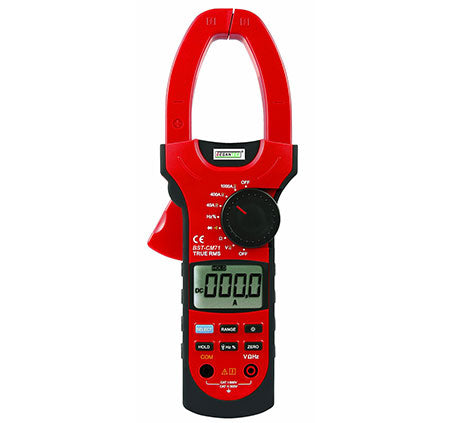

BESANTEK BST-CM71 1000A TRUE RMS AC/DC CLAMP METER

BESANTEK BST-CM71 1000A TRUE RMS AC/DC CLAMP METER

SKU: e52e98f6f941
In Stock

In Stock

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:
Tag:

Description

BESANTEK Digital True RMS Clamp Meter Designed For Measures AC/DC Voltage And Current, Resistance, Frequency, Duty Cycle, Also Performing Diode Check And Continuity Test.

UPC Number: 752830836068

Warranty Certificate

Features

  • True RMS measurement.
  • AC/DC voltage, AC/DC current, resistance, diode check, continuity test, duty cycle and frequency measurement.
  • Auto ranging.
  • Data hold function.
  • Sleep mode.
  • Low battery warning indicator.
  • Display backlight.
  • 55mm maximum jaw diameter.
  • Measurement update speed 3 times/second.
  • Compact and comfortable design.
  • Accessories: Instruction manual, battery, test lead and tool box.

Tech. Specification

Range: 40A/400A/1000A
Accuracy: (2%+2)

AC Current

Range: 40A/400A/1000A
Accuracy: (1.5%+5)

DC Current

Range: 400mV/4V/40V/400V/600V
Accuracy: (1.2%+3)

AC Voltage

Range: 400mV/4V/40V/400V/600V
Accuracy: (0.8%+1)

DC Voltage

Range: 400/4k/40k/400k/4M/40M
Accuracy: (1%+2)

Resistance

Range: 100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
Accuracy: (0.1%+3)

Frequency

3999

Display Count

55mm

Jaw Capacity

0.1%~99.9%

Duty Cycle

47mm x 30mm

LCD Size

0C~50C,
0~30C (85%RH), 30~40C (75%RH),40~50C (45%RH)

Operating Temperature &Humidity

-20C~60C, 85%RH

Storage Temperature &Humidity

9V Alkaline battery (6LF22)

Power Source

285.3 x 105 x 44.5 mm

Dimensions

533g (battery included)

Weight



Ordering Info.

  • BESANTEK BST-CM71 1000A True RMS AC/DC Clamp Meter
