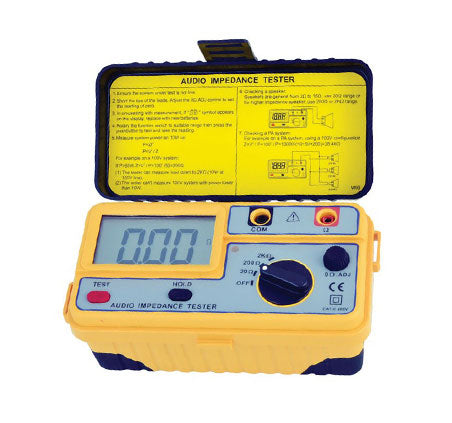

BESANTEK BST-AIT01 AUDIO IMPEDANCE TESTER
Did you like this product? Add to favorites now and follow the product.
Description
BESANTEK Audio Impedance Tester is designed for true measurement of speaker system actual impedance at 1kHz.
UPC Number: 752830835160
Shipping Time: 2 – 4 Weeks
Features
- Large LCD: 68 x 34mm (2.677 x 1.338).
- True measurement of speaker systems actual impedance at 1kHz.
- Three test ranges allow testing of home theater and commercial sound systems.
- Measures transformer impedances.
- Battery operation.
- Low battery warning indicator.
- Data hold function.
- 0adjustment.
- Accessories: Instruction manual, test leads, soft pouch and batteries.
Tech. Specification
|
Measuring Ranges |
0~20/0~200/0~2k |
|
Test Frequency |
1kHz |
|
Accuracy |
20: 2%rdg2dgt or 0.1, which is greater 200/2k: 2%rdg 2dgt |
|
Low battery indication |
|
|
Data Hold Indication |
|
|
Display |
LCD 3 digit (2000 counts) |
|
Power Source |
1.5 V ( AA) x 8 |
|
Dimensions |
175 (L) x 85 (W) x 75 (D) mm |
|
Weight |
Approx. 620g (battery included) |
Symbol appears on the display
Symbol appears on the displayOrdering Info.
- BESANTEK BST-AIT01 Audio Impedance Tester
